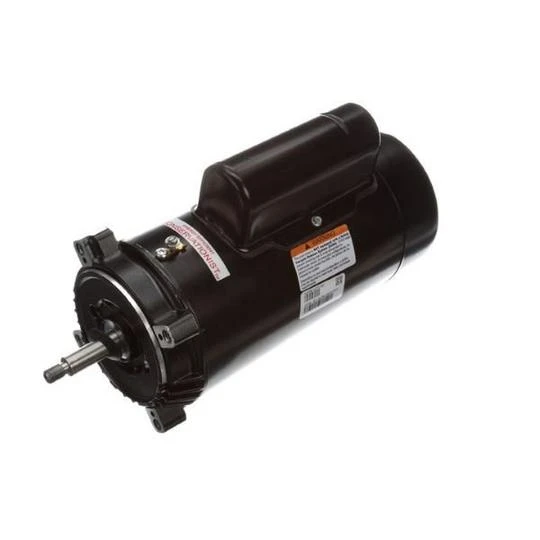

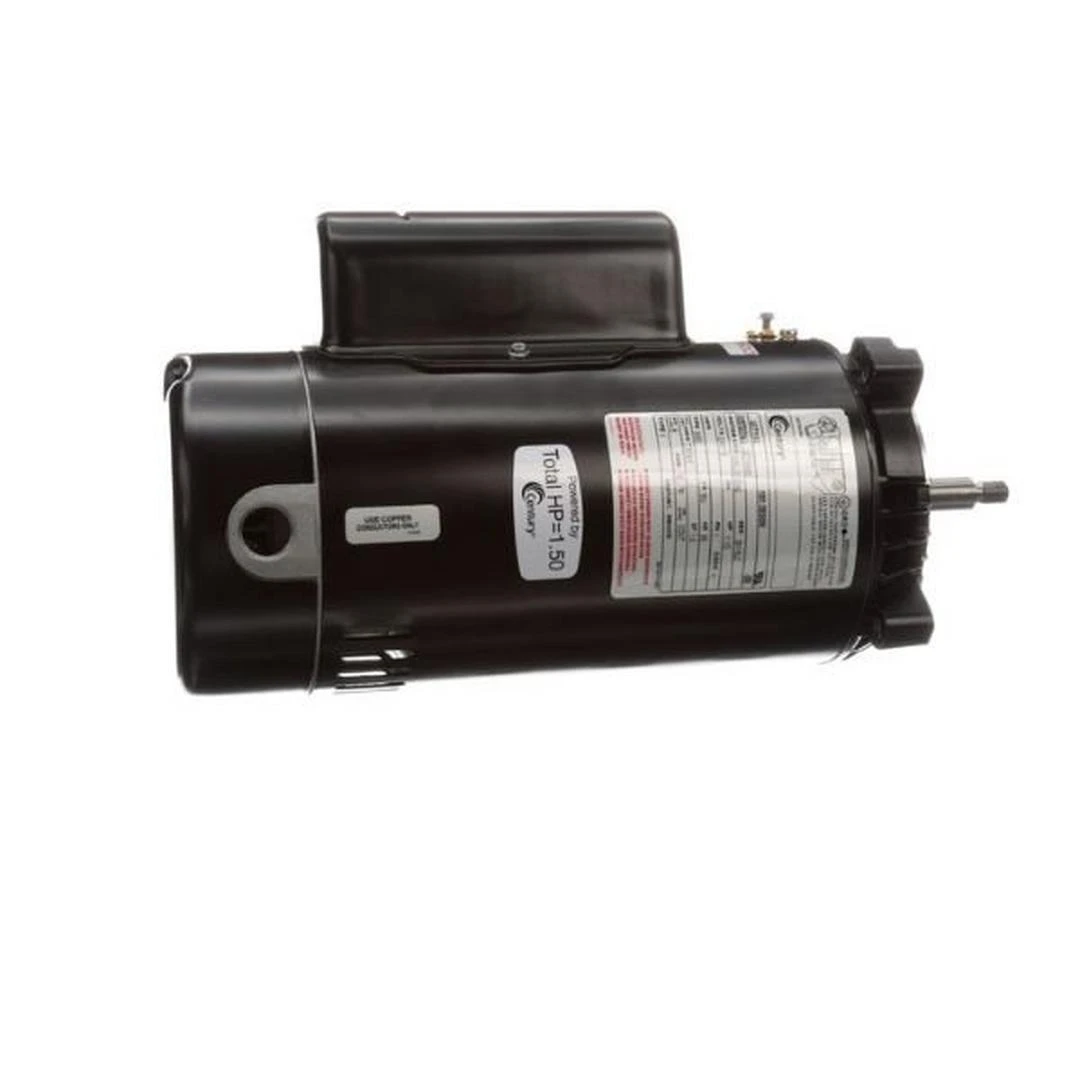

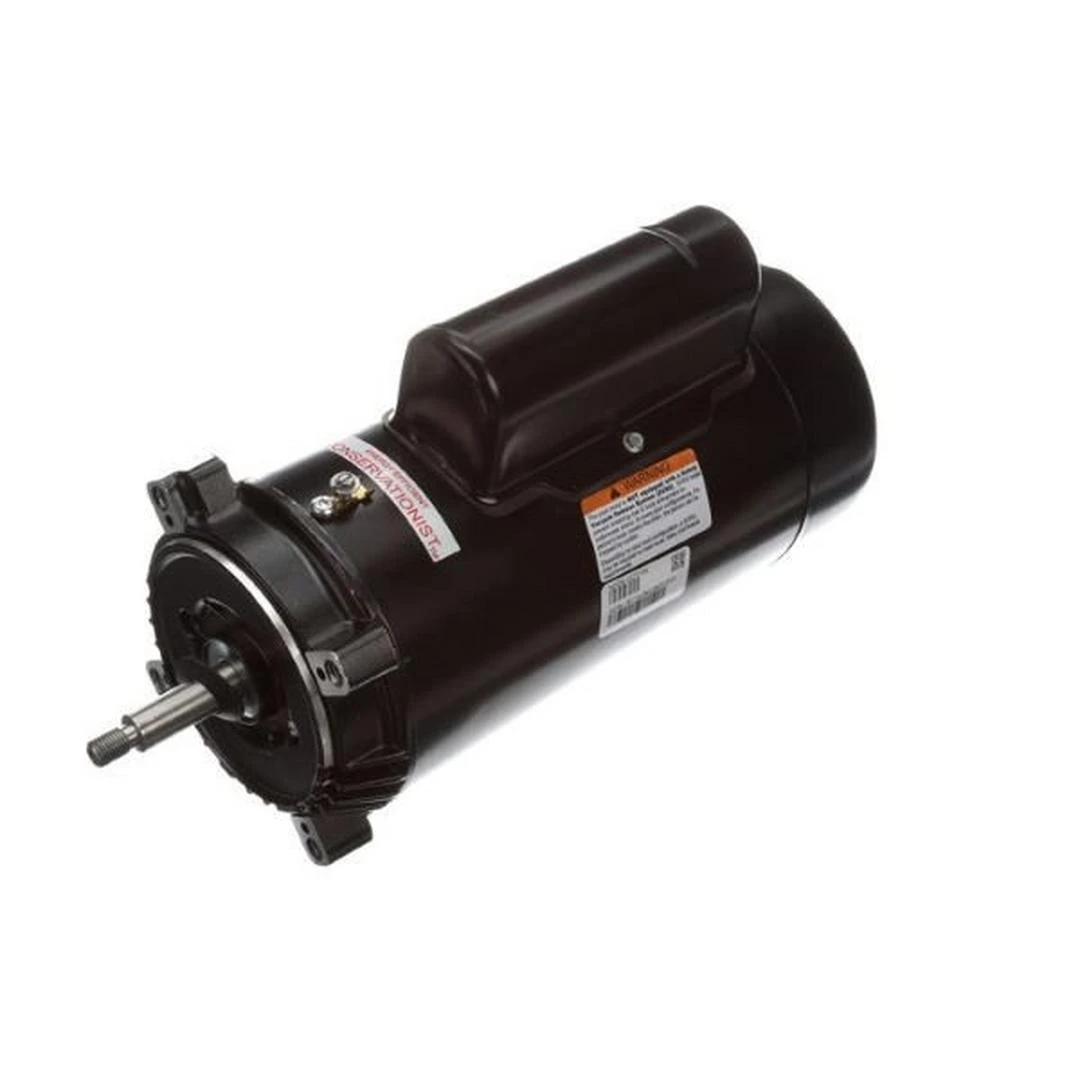

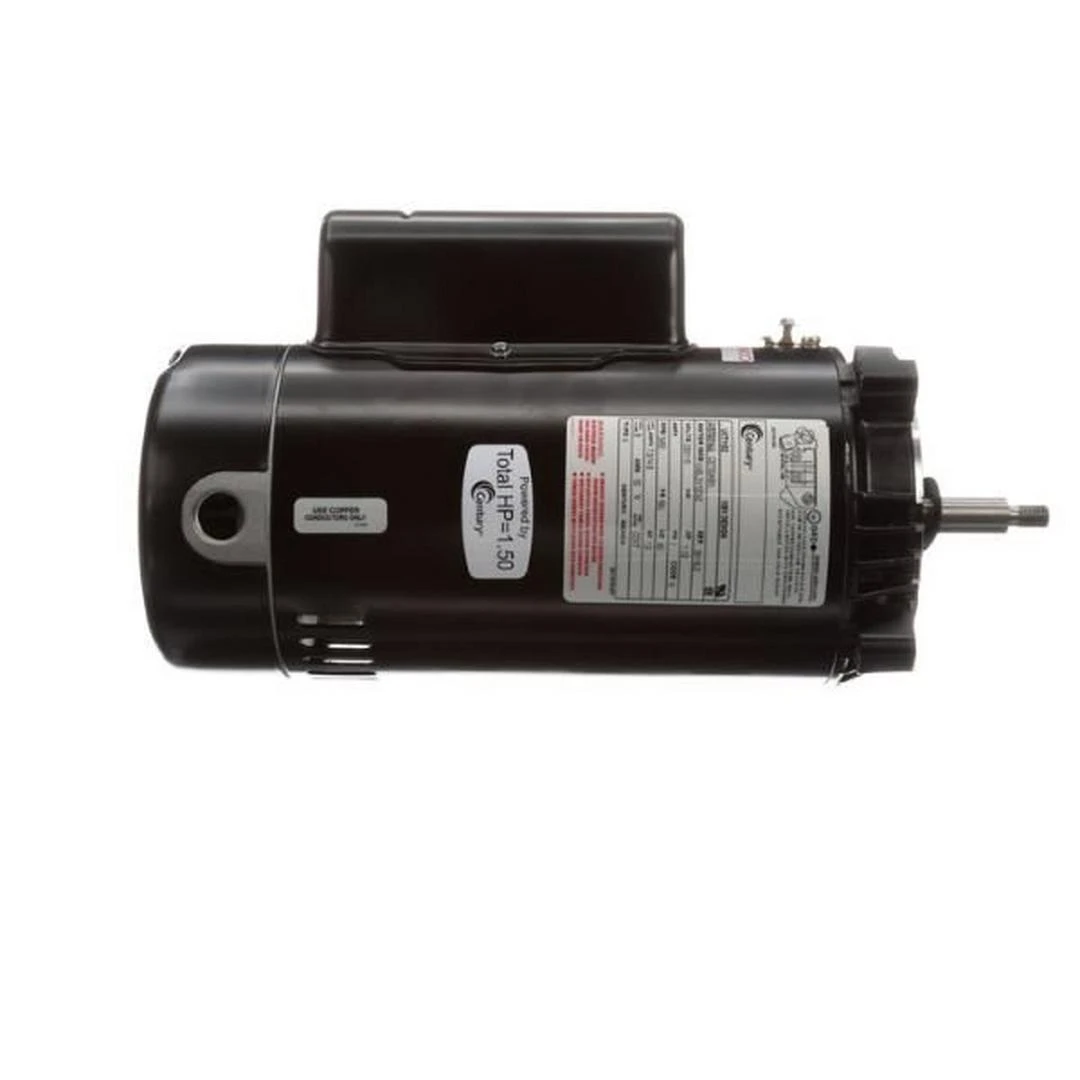

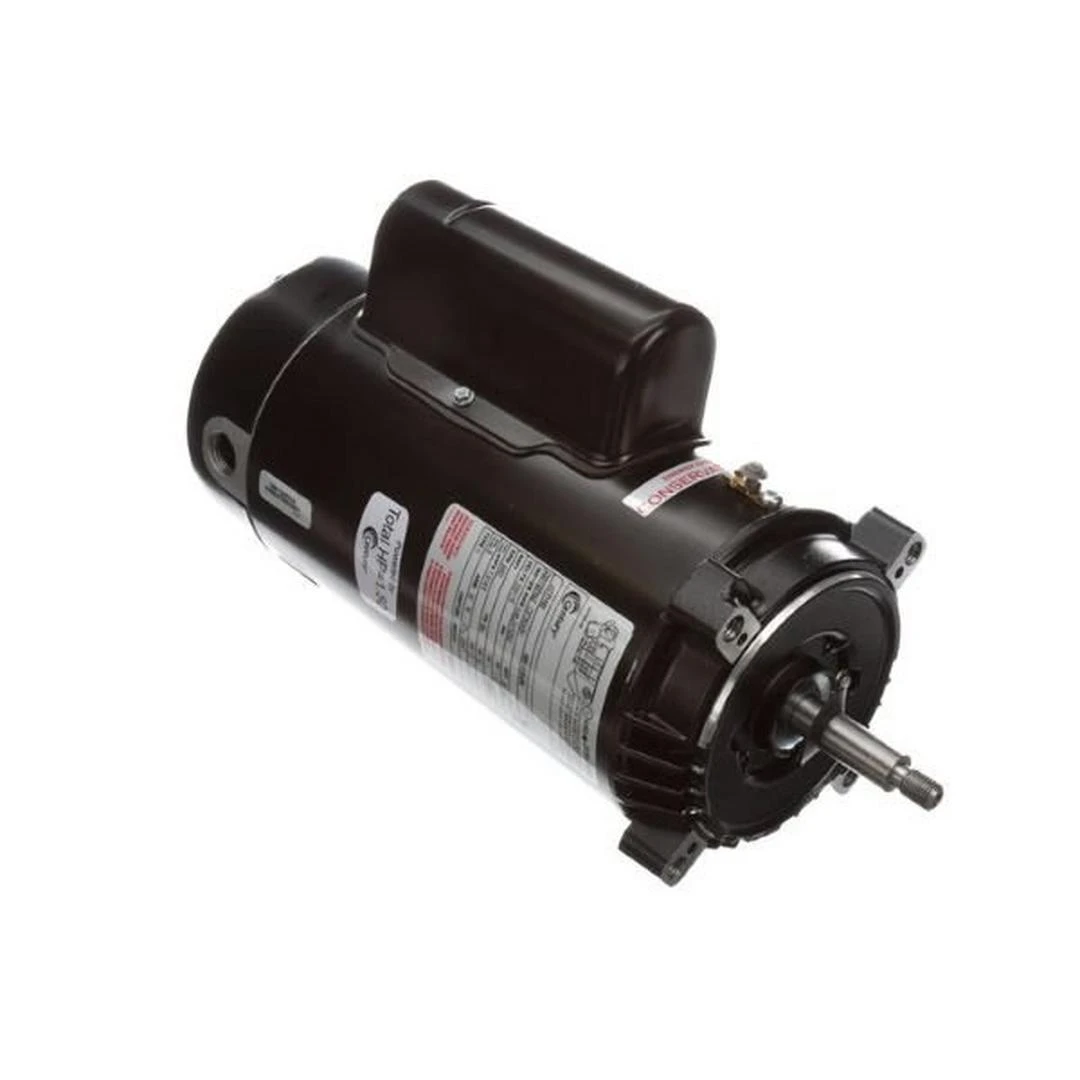

Century A.O. Smith – 56J C-Face 1-1/2 HP Single Speed Up Rated Pool Filter Motor, 14.6/7.3A 115/230V

Original price was: $399.99.Current price is: $99.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool

Auto Protector
NEMA 56C Face Mount
Open Dripproof
Capacitor Start and Capacitor Start-Capacitor Run
Rotation: CCW Pump End
Sealed Ball Bearings
Sealed switch design
1081 Design
50 C Ambient
60 Hertz
303 Stainless Steel Shaft

The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool environment. It has a threaded shaft that allows for convenient and direct mounting. With horsepower ratings ranging from 3/4-1/8″P to 2-1/3HP, the Two-Compartment NEMA C-Face Pool Filter Motor provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor does not include a Hi/Lo switch but the end cover and switch assembly may be purchased separately for remote operation.

Flange Type:	C Flange
Energy Efficiency:	High Energy Efficiency
Phase Type:	Single Phase
Voltage:	115V / 230V
Shaft Type:	Threaded
Service Factor:	1.00 – 1.25
Installation Type:	Residential
Horsepower:	1-1/2 HP
Speed Settings:	Single Speed
Rating Type:	Up-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Compatible Pumps:	SP2610X15
Compatible Pumps:	SP3010X152AZ
Compatible Pumps:	SP2810X15
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
