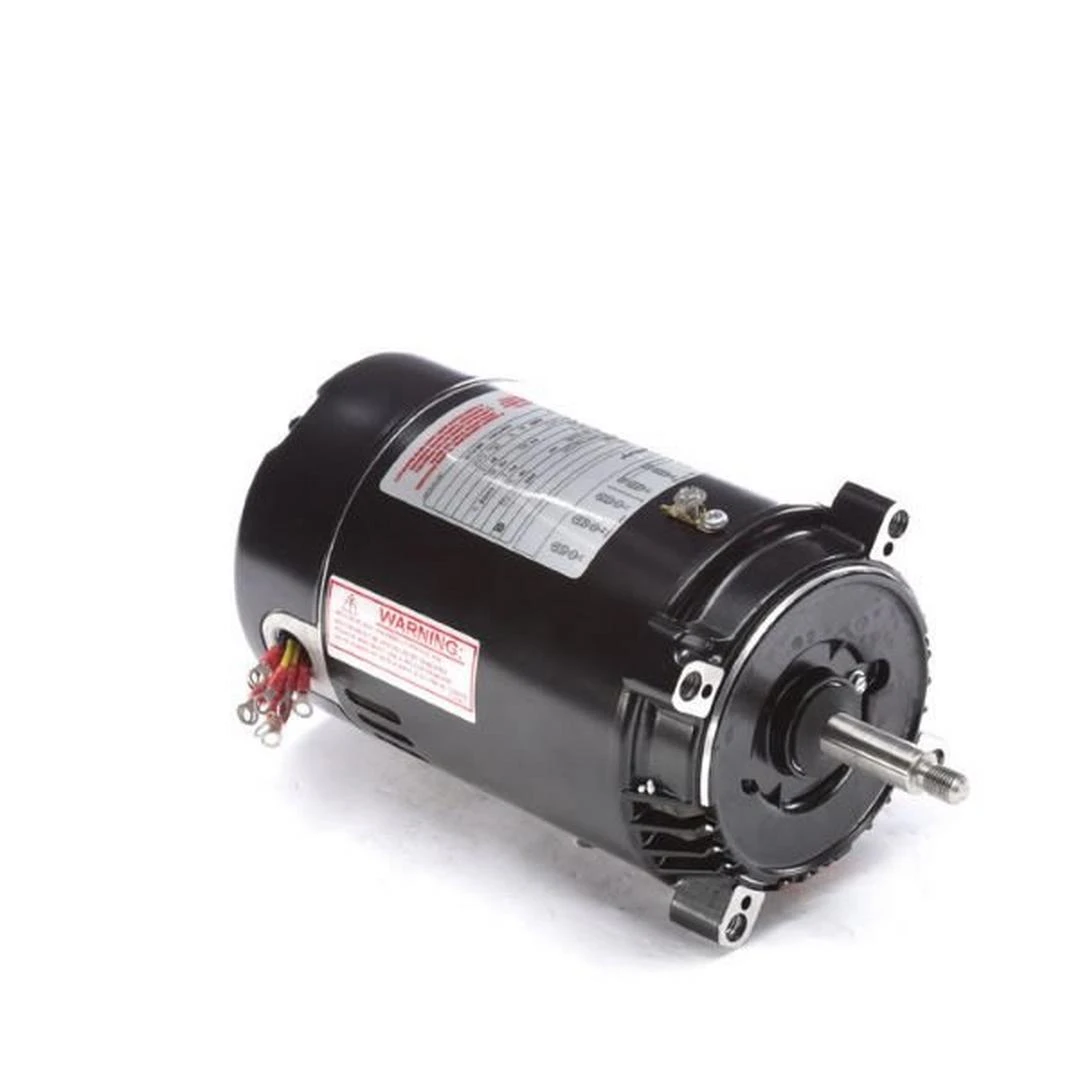

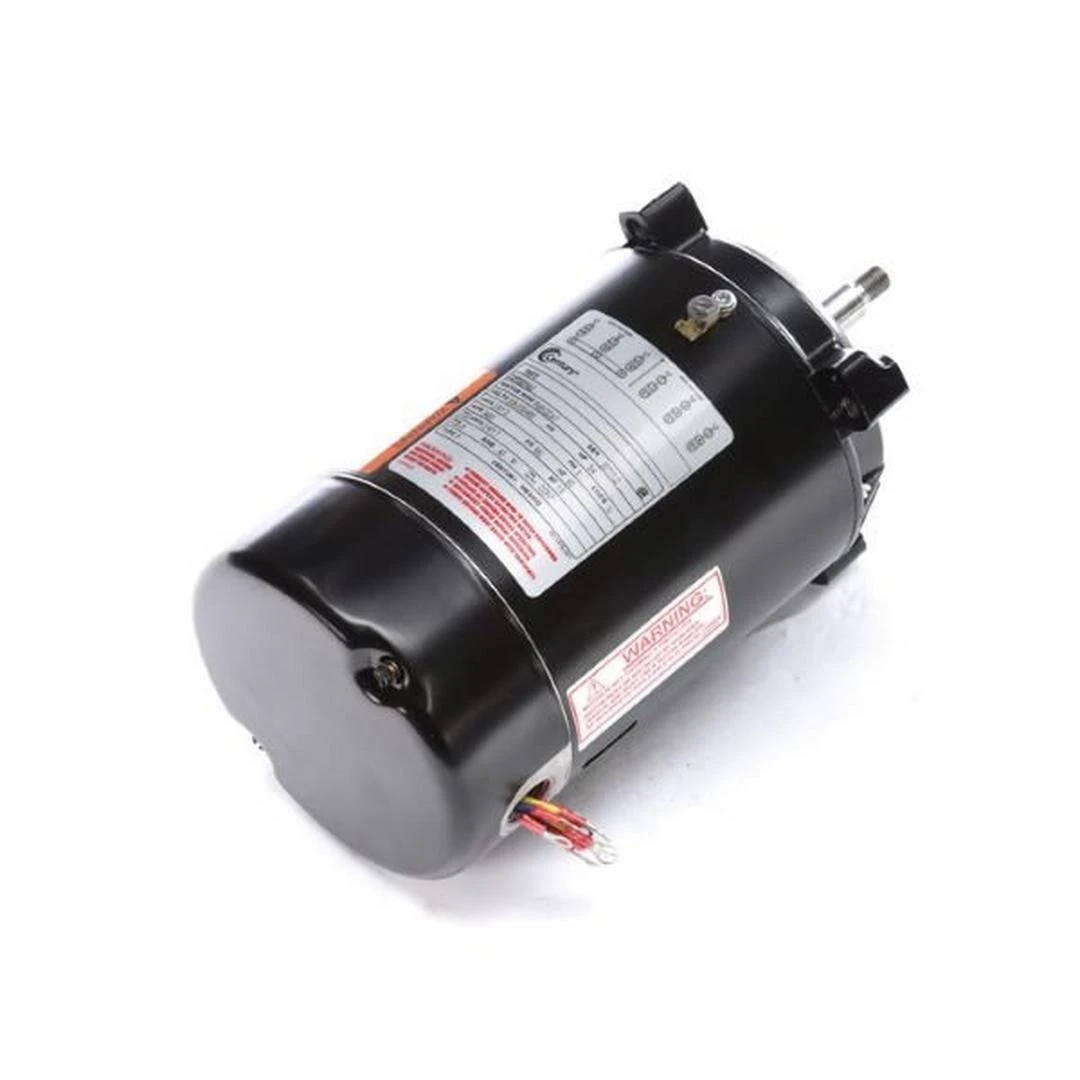

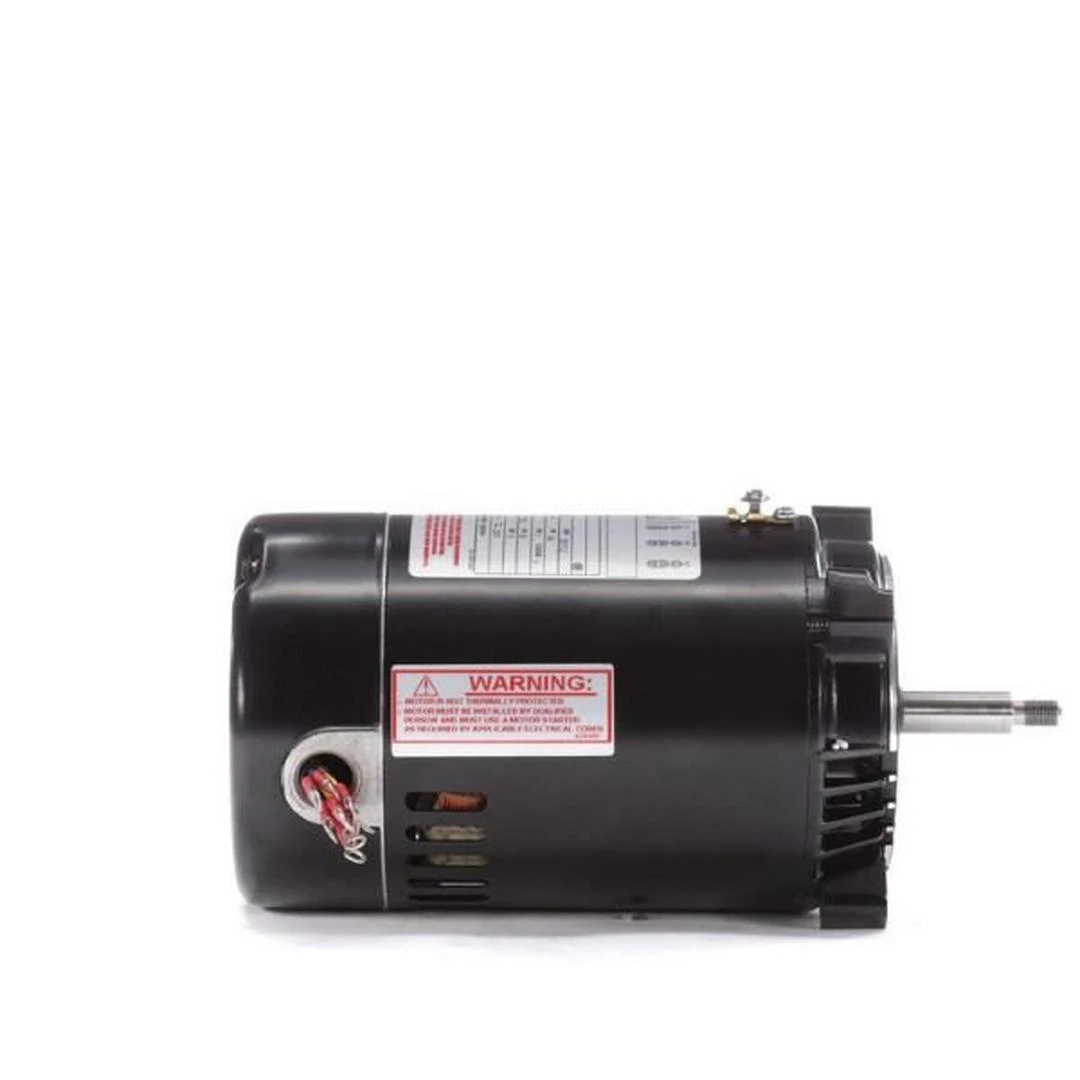

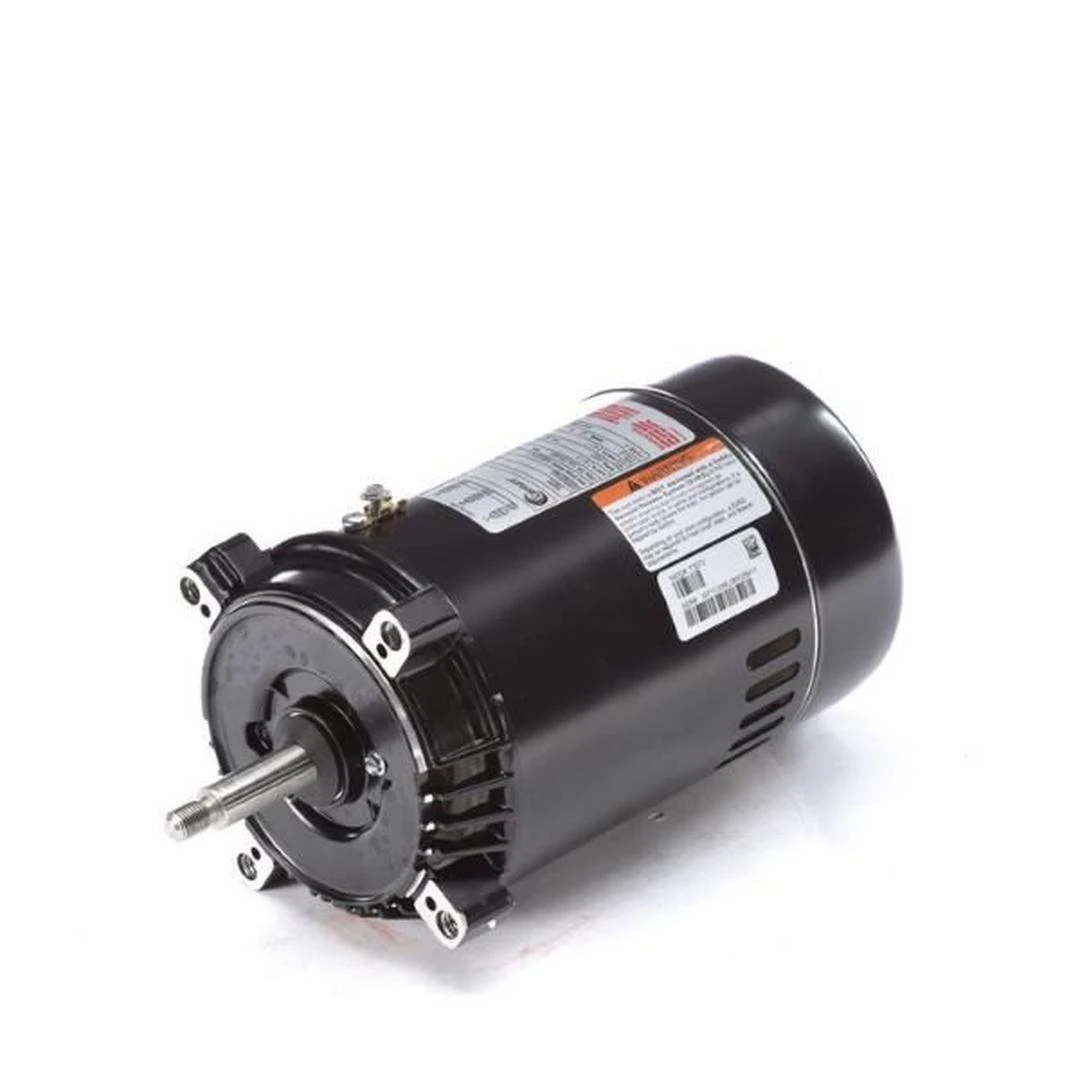

Century A.O. Smith – 56J C-Face 3/4 HP Three Phase Pool And Spa Pump Motor, 3.4/1.7A 208-230/460V

Original price was: $339.99.Current price is: $97.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance

Ball Bearings
Continuous Duty
Internal junction box
Keyed and Stainless Steel Threaded Shafts
NEMA 56C Mount
Open Dripproof
40C Ambient
60 Hertz

Running on a continuous current, the NEMA C-Face 3-Phase Pump Motor provide excellent performance. Available in 1/2″P to 2HP, the NEMA C-Face 3-Phase Pump Motor is ideal for moving water efficiently. Its body is made with keyed or threaded stainless steel shafts and its mounting bracket and end frames are constructed from die-cast corrosion resistant aluminum. The NEMA C-Face 3-Phase Pump Motor contains a 1/2″ x 14? thread tapped opening for convenient conduit fitting. Supplied with a horizontal canopy, the NEMA C-Face 3-Phase Pump Motor can be altered to suit vertical operation for versatility.

Service Factor:	1.50 – 1.75
Pool Type:	Spa/Hot Tub
Voltage:	208 – 230V / 460V
Shaft Type:	Threaded
Installation Type:	Residential
Horsepower:	3/4 HP
Service Factor:	1.25 – 1.50
Phase Type:	Three Phase
Voltage:	230V / 460V
Speed Settings:	Single Speed
Energy Efficiency:	High Energy Efficiency
Flange Type:	C Flange
Flange Type:	J Flange
Product Type:	Pool Motor
Motor Frame:	56 Frame
Energy Efficiency:	Standard
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
Pump Speed:	Single
Service Factor:	1.5
Total Horsepower:	1.13 THP
