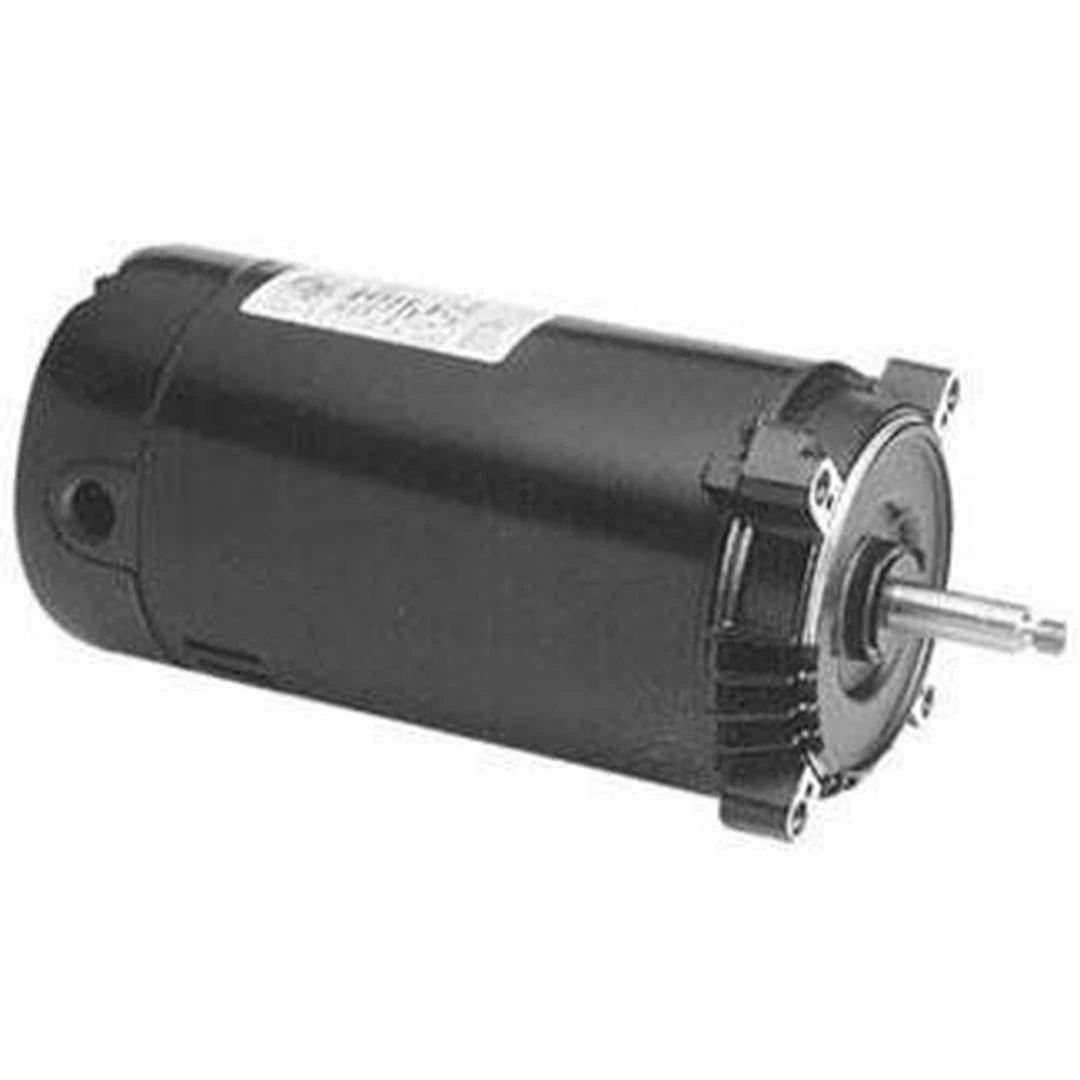

Century A.O. Smith – ST1102 C-Face 1 HP Full Rated 56J Pool And Spa Pump Motor

Original price was: $319.99.Current price is: $98.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

The Century A.O. Smith ST1102 C-Face 1 HP Full-Rated Single Speed 115V/230V Pool and Spa Pump Motor is a single phase motor.

Auto Protector
NEMA 56C Face Mount
Open Dripproof
Capacitor Start and Capacitor Start-Capacitor Run
Rotation: CCW Pump End
Sealed Ball Bearings
Sealed switch design
1081 Design
50 C Ambient
60 Hertz
303 Stainless Steel Shaft

The Century Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. Equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting operation. The Century Pool and Spa Pump Motor has a threaded shaft that allows for convenient and direct mounting. Available in horsepower ratings ranging from 1/2HP to 3HP, the Century A.O. Smith Pool and Spa Pump Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Service Factor:	1.50 – 1.75
Shaft Type:	Keyed
Shaft Type:	Threaded
Flange Type:	C Flange
Speed Settings:	Single Speed
Flange Type:	J Flange
Phase Type:	Single Phase
Horsepower:	1 HP
Service Factor:	1.25 – 1.50
Installation Type:	Residential
Voltage:	120V / 240V
Voltage:	115V / 230V
Rating Type:	Full-Rated
Product Type:	Pool Motor
Energy Efficiency:	Standard
Motor Frame:	56 Frame
Compatible Pumps:	SP3010EEAZ
Compatible Pumps:	PHPF1.0
Manufacturer:	Century A.O. Smith
Warranty:	1-Year
