U.S. Motors – ASB796 C-Flange 1.5HP Full Rated 56J 115/230V Pool & Spa Pump Motor

Original price was: $306.00.Current price is: $96.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

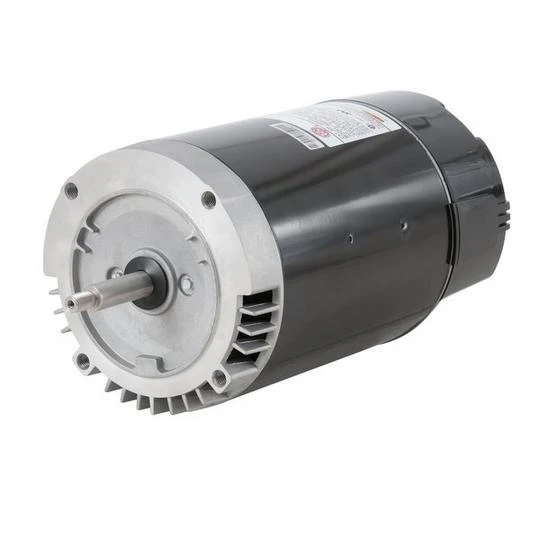

The U.S. Motors Emerson ASB796 C-Face 1.5HP Full Rated 56J 115V/230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor.

Shaft Threads – 7/16-20 UNF-2A
50 Degree C Ambient
Triple Bearing Protection
1081 Design
Continuous Duty
Class B Insulated
Sealed Ball Bearings
Thermally Protected
Service Factor: 1.3
RPM: 3450
Length without Shaft: 12.02
8.7-7.8/15.6A 208-230/115V

The U.S. Motors Emerson ASB796 C-Face 1-1/2 HP Full Rated 56J 115V/230V Pool and Spa Pump Motor is a powerfully designed replacement motor.
Similar to spa and pool replacement motors, the Emerson 56 C-Flange Motor is a two-compartment model with a voltage selection device, running at 1.5HP and 115V/230V. It is Class B-insulated for efficient operation and has been designed with both sealed ball bearing sand triple bearing protection. The Emerson replacement motor has an open drip proof design for water damage prevention and is thermally protected.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Flange Type:	J Flange
Speed Settings:	Single Speed
Energy Efficiency:	High Energy Efficiency
Service Factor:	1.25 – 1.50
Voltage:	115V / 208 – 230V
Voltage:	120V / 240V
Pool Type:	In Ground
Horsepower:	1-1/2 HP
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Manufacturer:	U.S. Motors Emerson
