U.S. Motors – Emerson 56CZ Single Speed 3/4HP Full Rated Pool Cleaner Replacement Motor

Original price was: $249.99.Current price is: $97.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

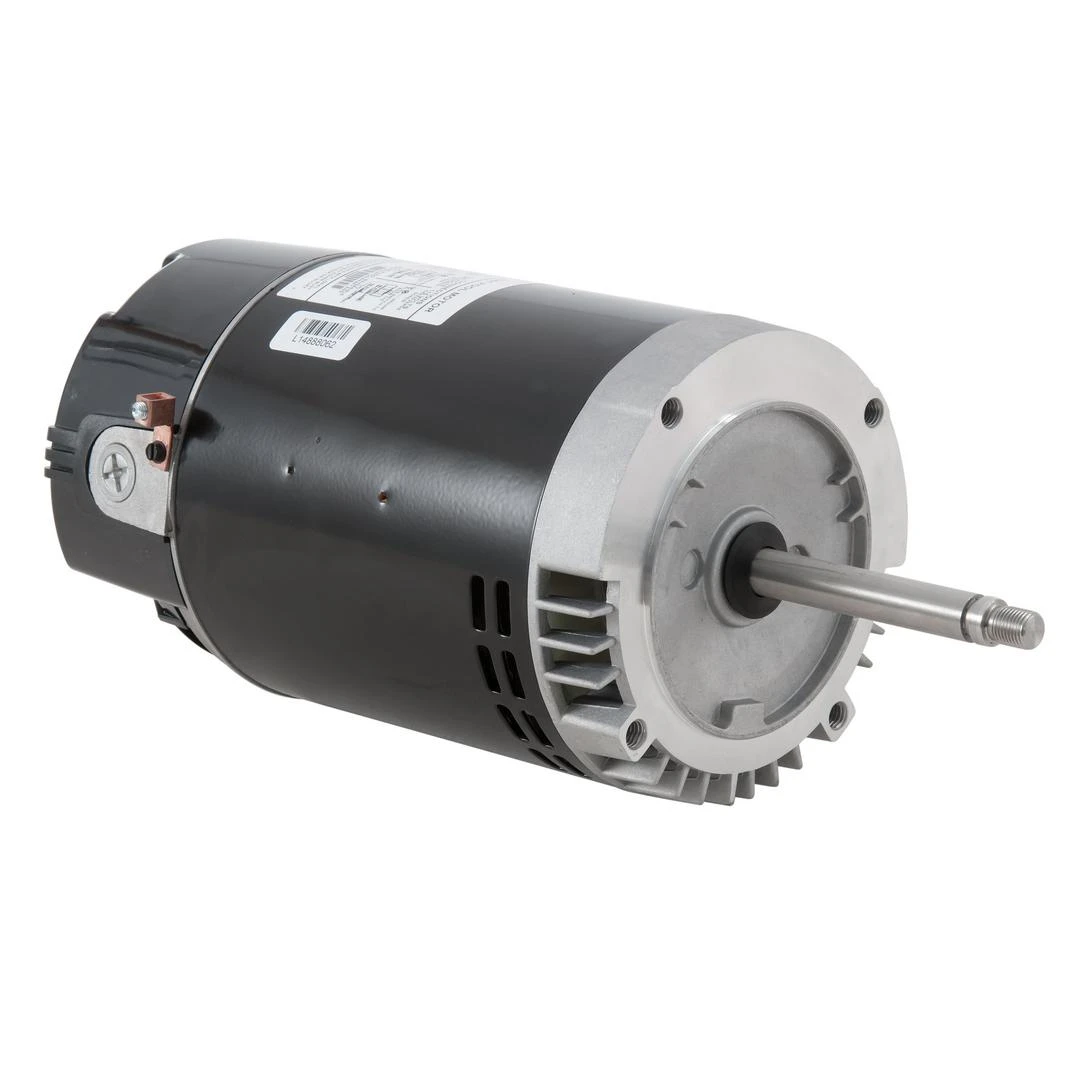

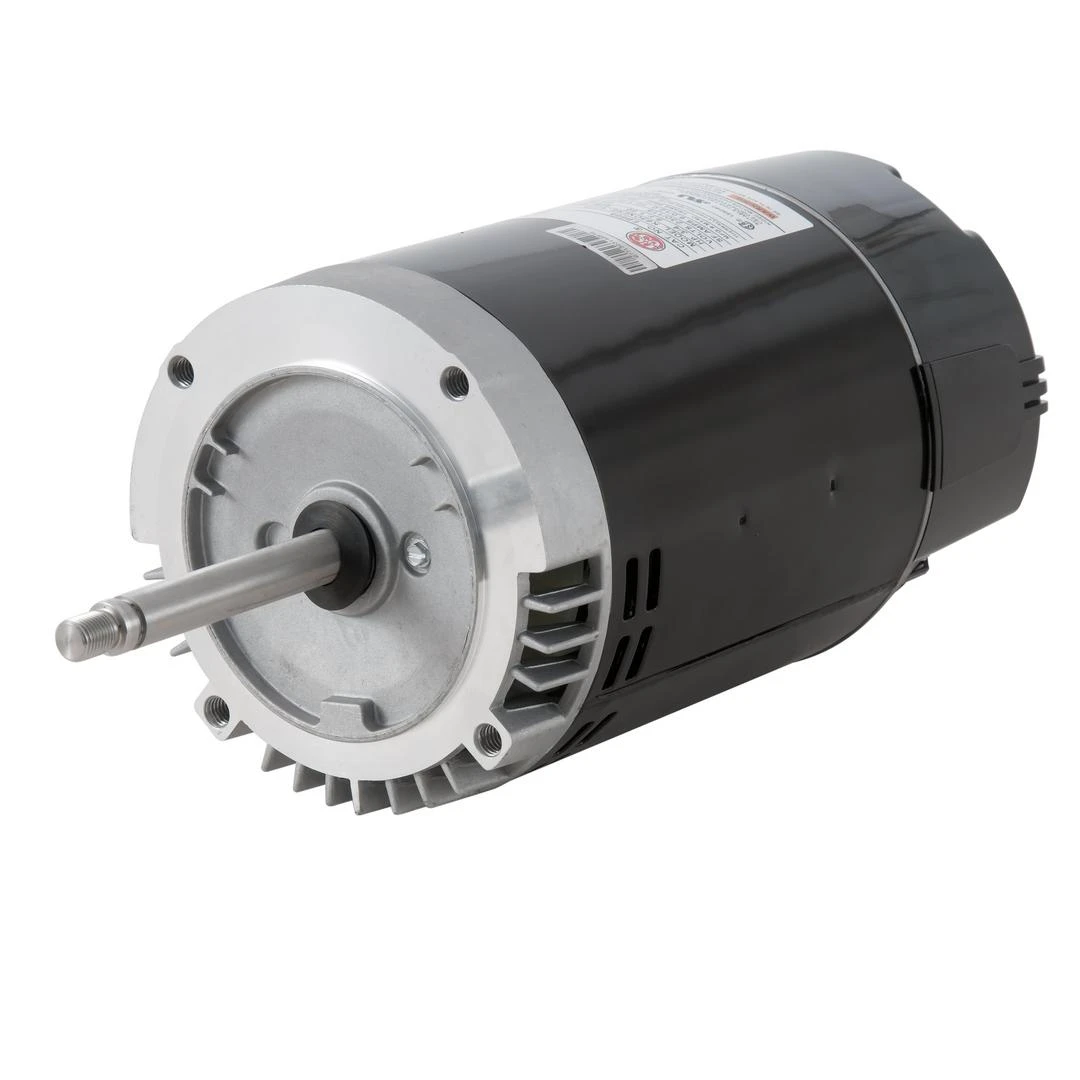

The Emerson 56 CZ-Frame Motor is a replacement motor for your pool cleaner.

Shaft Threads – 1/2-20 UNF-2A
50 Degree C Ambient
1081 Design
303 Stainless Steel Shaft
Service Factor: 1.5
RPM: 3450
Voltage selection device (dual voltage only)
Amps: 6.0/12.0
6.0/12.0A 115V/230V
Length without Shaft: 10.77

The Emerson 56 CZ-Frame Motor is a replacement motor for your pool cleaner. Similar to spa and pool replacement motors, the Emerson 56 CZ-Frame Motor is a two-compartment model with a voltage selection device, running at 3/4HP and 115V/230V. It is Class B-insulated for efficient operation and has been designed with both sealed ball bearing sand triple bearing protection. The Emerson pool cleaner replacement motor has an open drip proof design for water damage prevention and is thermally protection. As an efficient model, the Emerson 56 CZ-Frame motor offers a dependable option in mechanical pool equipment.

Speed Settings:	Single Speed
Voltage:	115V / 230V
Service Factor:	1.50 – 1.75
Voltage:	120V / 240V
Flange Type:	J Flange
Horsepower:	3/4 HP
Rating Type:	Full-Rated
Energy Efficiency:	Standard
Motor Frame:	56 Frame
Product Type:	Pool Motor
Manufacturer:	U.S. Motors Emerson
Replacement For:	Pentair
Pump Speed:	Single
Service Factor:	1.5
Total Horsepower:	1.13 THP
