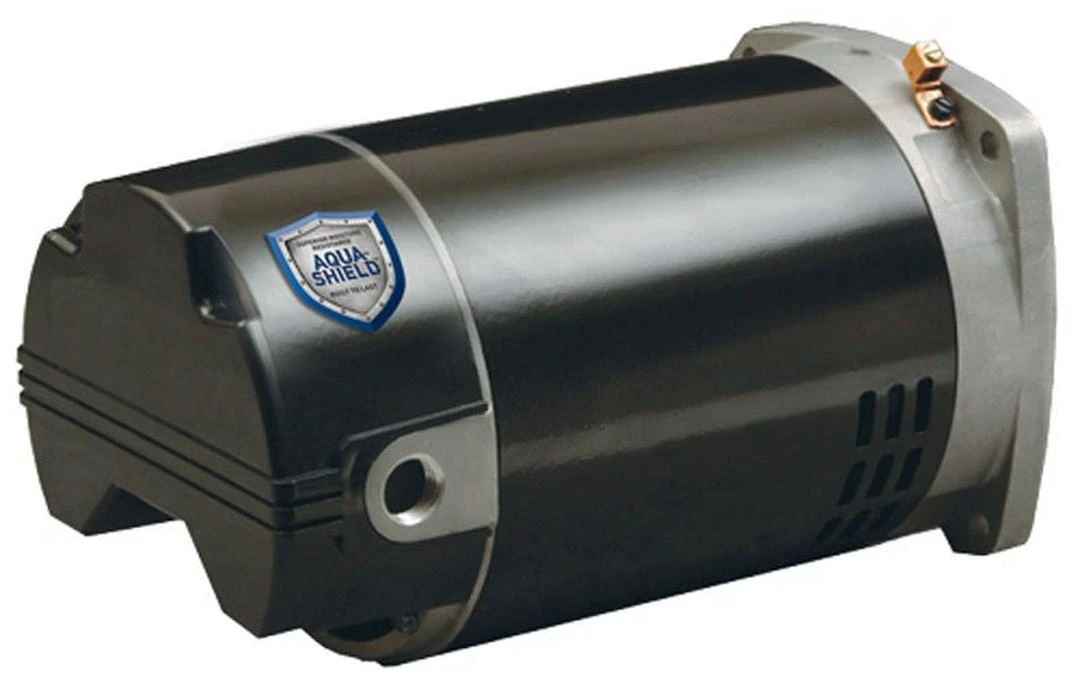

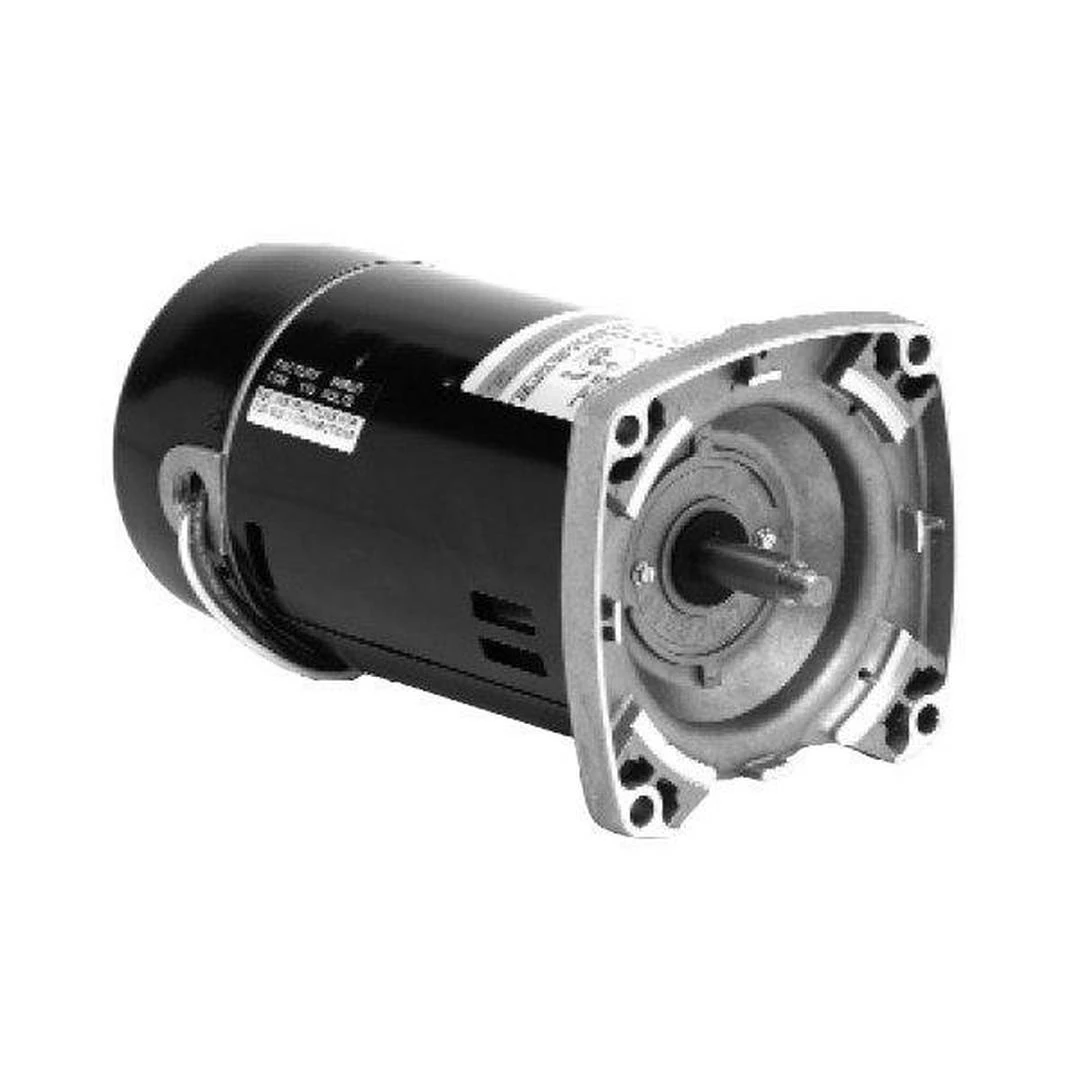

U.S. Motors – Emerson 56Y TriStar Single Speed 3/4HP Full-Rated Pool And Spa Motor

Original price was: $239.99.Current price is: $99.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body.

1081 Design
Shaft Threads 1/2-20 UNF-2A
Continuous Duty
50 Degrees Celsius Ambient
Voltage Selection Device (Dual Voltage Only)
Triple Bearing Protection
Service Factor: 1.6
RPM: 3450
208-230/115V
Length without Shaft: 11.74

The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body. Boasting Two Compartment and stainless steel design, it’s made to handle harsh pool and spa environments. Protected by sealed ball bearings and an open drip proof enclosure, the Emerson 56 Y-Frame Hayward TriStar motor is sure to bring you years of use. Its threaded shaft allows for a secure fit while providing a stronger structure. Its large 6.5 frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. Featuring 3/4 HP and single phase wiring, you can be sure to get consistent and reliable operation.

Energy Efficiency:	High Energy Efficiency
Service Factor:	1.75 – 2.00
Flange Type:	Square Flange
Horsepower:	3/4 HP
Speed Settings:	Single Speed
Voltage:	115V / 208 – 230V
Rating Type:	Full-Rated
Product Type:	Pool Motor
Motor Frame:	56 Frame
Manufacturer:	U.S. Motors Emerson
Pump Speed:	Single
Service Factor:	1.85
Total Horsepower:	1.39 THP
