U.S. Motors – Emerson ASB130 C-Flange 2HP Full Rated 56J 230V Pool And Spa Motor

Original price was: $369.99.Current price is: $99.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

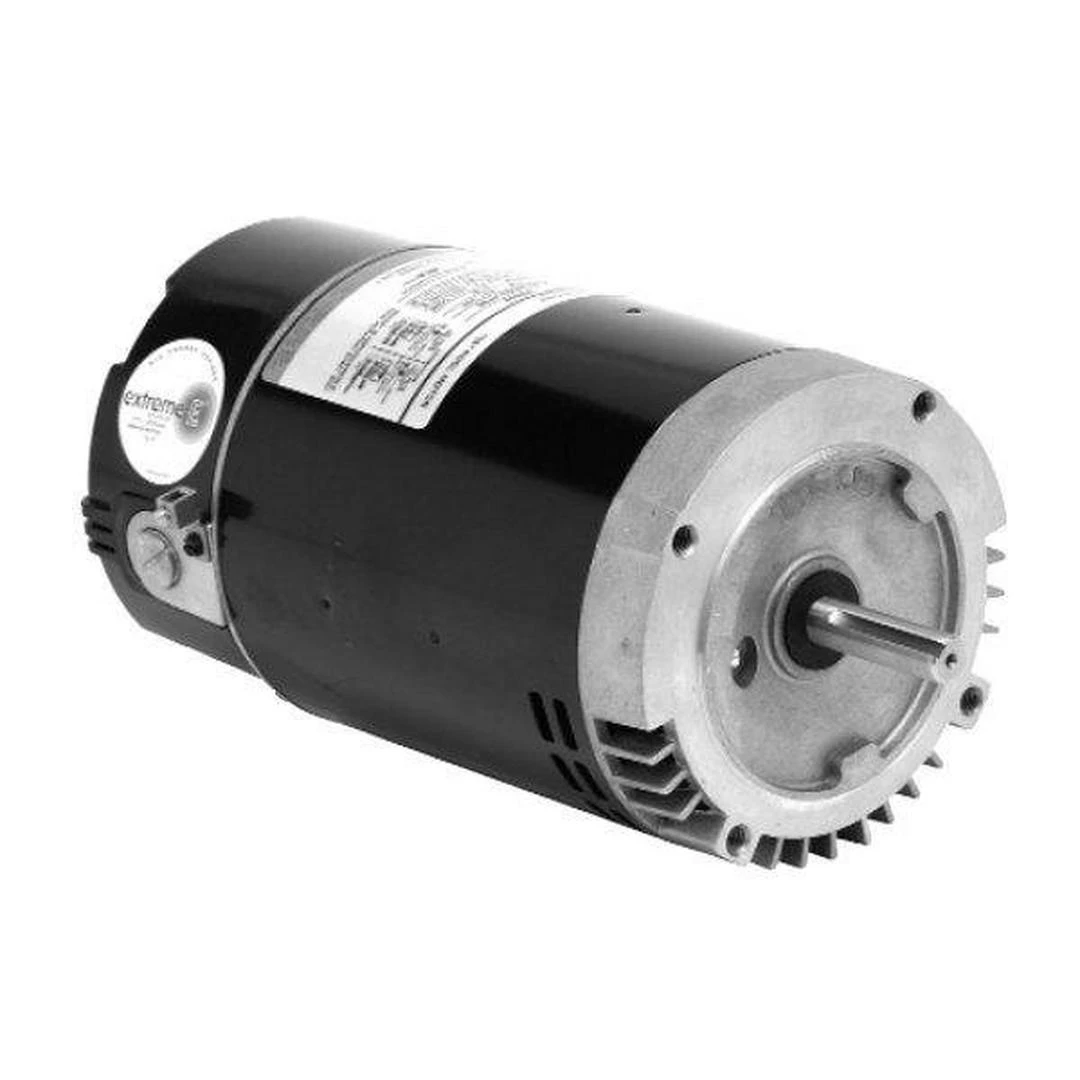

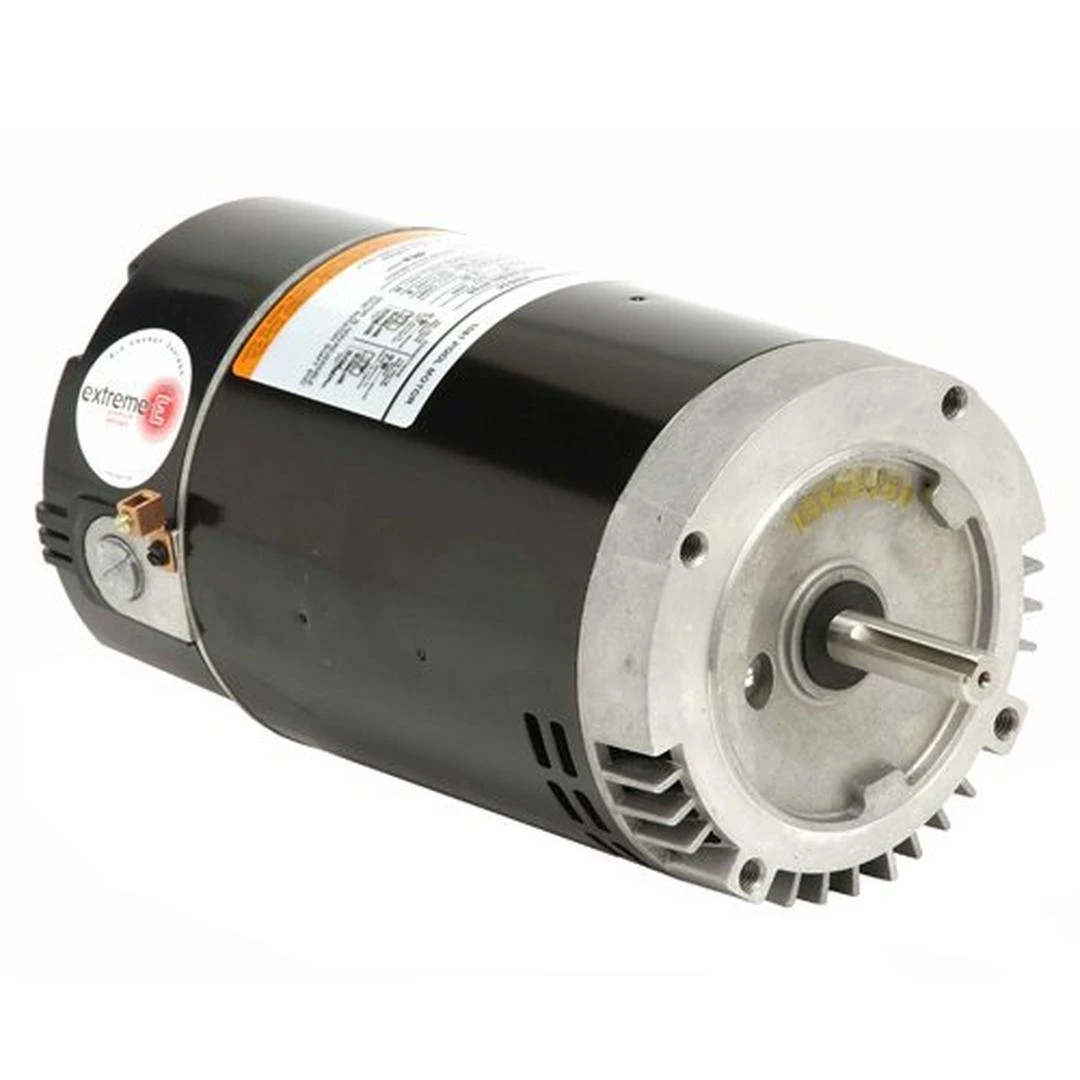

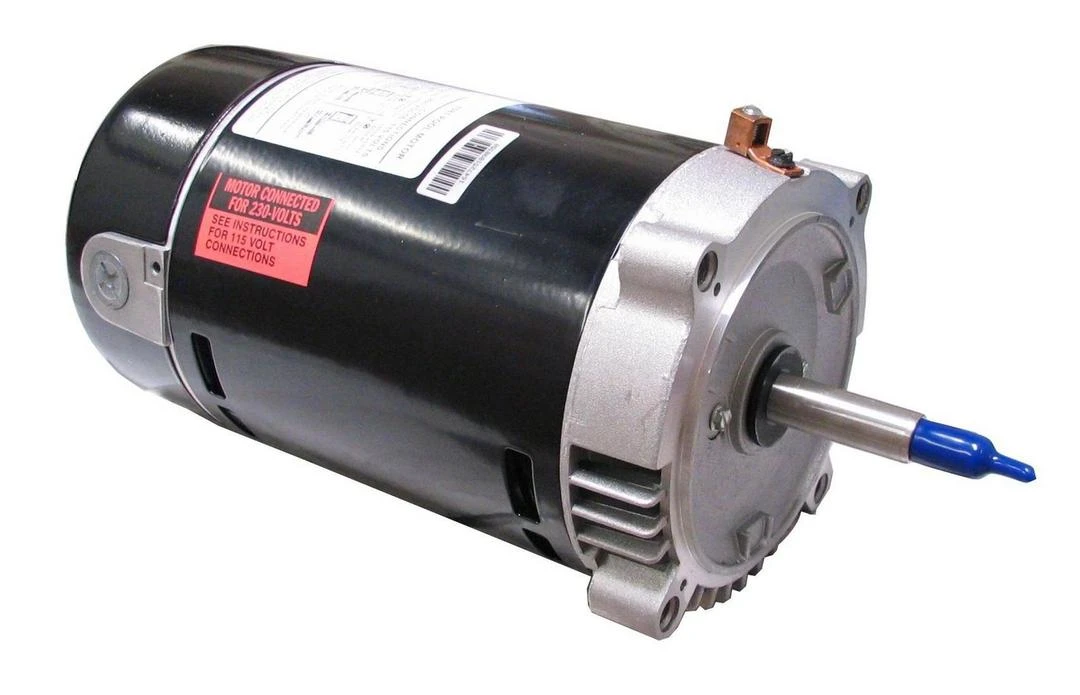

The U.S. Motors Emerson ASB130 C-Face 2HP Full Rated 56J 230V Single Speed Pool and Spa Pump Motor is a powerfully designed replacement motor.

Shaft Threads – 7/16-20 UNF-2A
50 Degree C Ambient
1081 Design
Continuous Duty
Class B Insulated
303 Stainless Steel Shaft
Thermally Protected
Service Factor: 1.2
RPM: 3450
Shaft: Threaded
Length without Shaft: 11.77
10.5A 230V

The U.S. Motors Emerson ASB130 C-Face 2 HP Full Rated 56J 230V Pool and Spa Pump Motor is a powerfully designed replacement motor.
Similar to spa and pool replacement motors, the Emerson 56 C-Flange Motor is a two-compartment model with a voltage selection device, running at 2HP and 230V. It is Class B-insulated for efficient operation and has been designed with both sealed ball bearing sand triple bearing protection. The Emerson replacement motor has an open drip-proof design for water damage prevention and is thermally protected.
Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.
