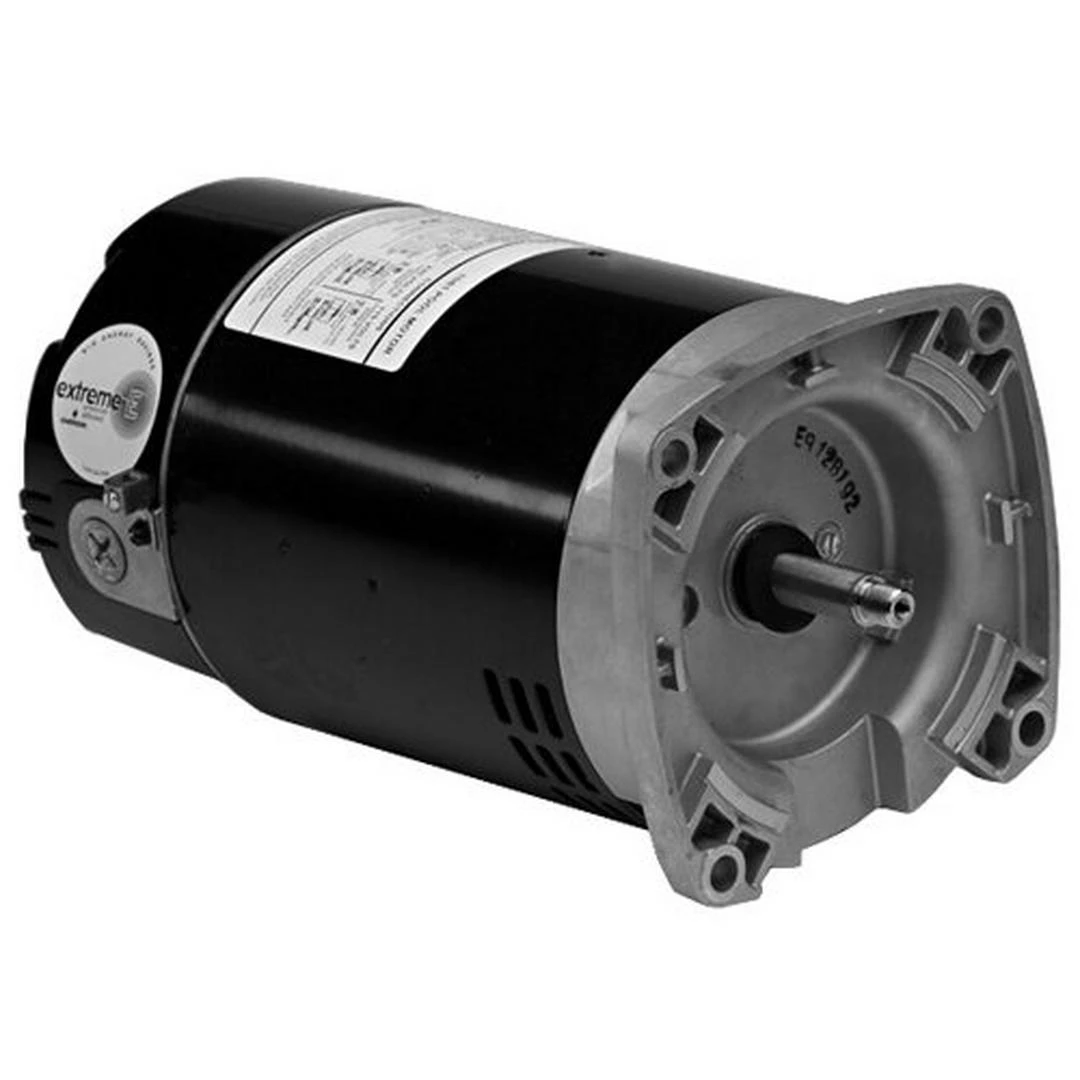

U.S. Motors – Emerson ASB842 Square Flange Single Speed 1-1/2HP Full Rated 56 Motor

Original price was: $397.00.Current price is: $98.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

U.S. Motors Emerson ASB842 Square Flange Single Speed 1-1/2HP Full Rated 56Y Motor is a powerfully designed motor for your pool or spa.

Two compartments
Shaft Threads 1/2-20 UNF-2A
50 degrees Celsius ambient
1081 Design
Continuous Duty
Switchless design
Voltage selection device (dual voltage only)
Service Factor: 1.47
RPM: 3450
Length without Shaft: 12.99
9.7-9.0/18.0A 208-230/115V
Total Horsepower (THP) rating of 2.20

U.S. Motors Emerson ASB842 Square Flange Single Speed 1-1/2HP Full Rated 56Y Motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5″ frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating.

Voltage:	115V / 208 – 230V
Flange Type:	Square Flange
Voltage:	240V
Motor Frame:	56Y Frame
Horsepower:	1-1/2 HP
Pool Type:	In Ground
Energy Efficiency:	High Energy Efficiency
Speed Settings:	Single Speed
Service Factor:	1.50 – 1.75
Rating Type:	Full-Rated
Product Type:	Pool Motor
Compatible Pumps:	011514
Compatible Pumps:	342231
Manufacturer:	U.S. Motors Emerson
Product Type:	Pool Pump
