U.S. Motors – Emerson EB844 Single Speed 3HP Up-Rated 56Y Pool And Spa Motor

Original price was: $390.00.Current price is: $97.99.

Quality products, fair prices.

Service that stands out, online and always timely.

Quick responses, top-notch service.

The best quality products, always.

U.S. Motor Emerson EB844 Single Speed 3HP Up-Rated 56Y Pool and Spa Motor is a reliable motor that provides power and efficiency.

1081 Design
Shaft Threads 1/2-20 UNF-2A
Continuous Duty
50 Degrees Celsius Ambient
Voltage Selection Device (Dual Voltage Only)
Triple Bearing Protection
Service Factor: 1
Service Factor: 1.15
RPM: 3450
Length without Shaft: 13.49
14.8-13.5A 208-230V

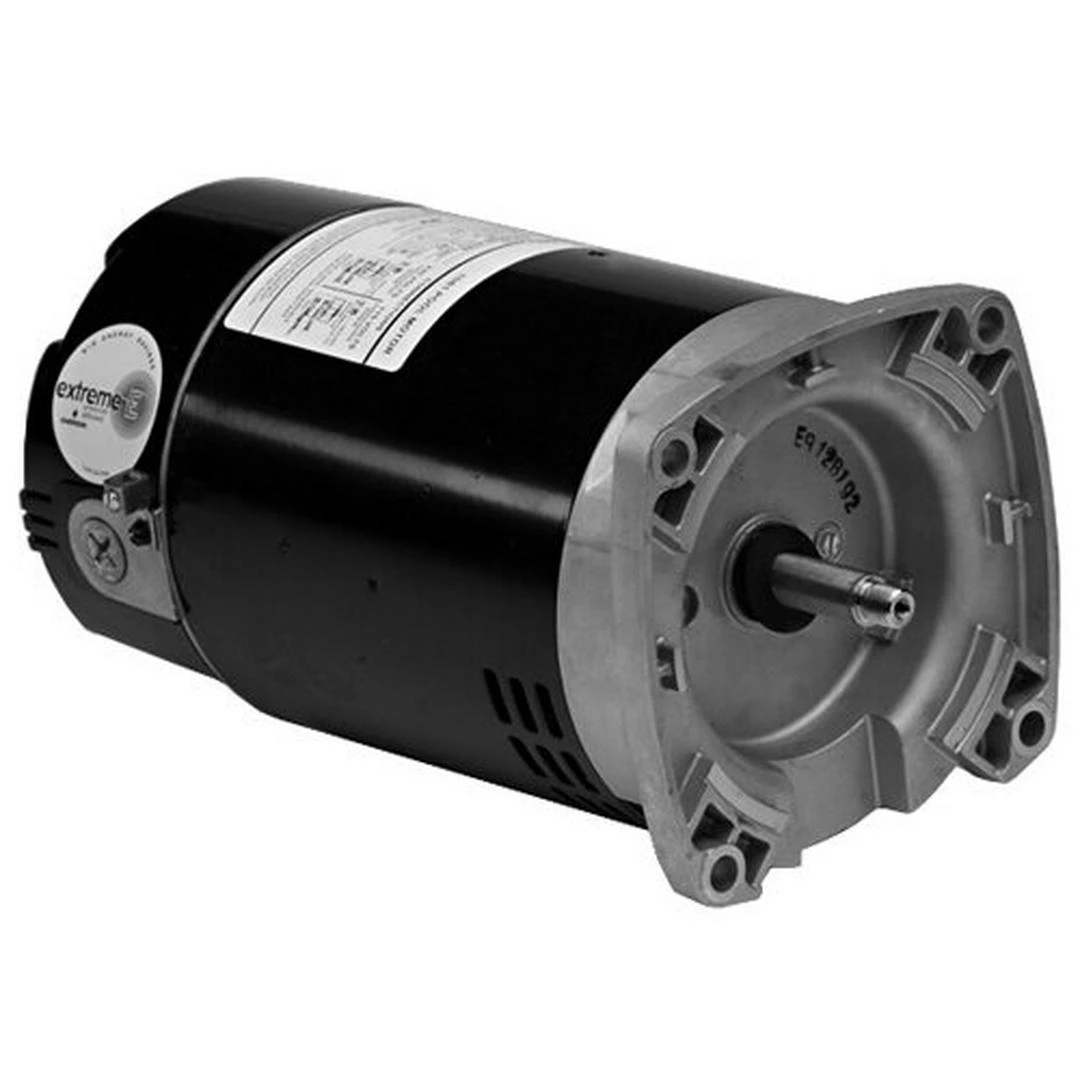

U.S. Motor Emerson EB844 Single Speed 3HP Up-Rated 56Y Pool and Spa Motor. The Emerson 56 Y-Frame Hayward TriStar is a reliable motor that provides power and efficiency in its 56 frame body. Boasting Two compartments and stainless steel design, it’s made to handle harsh pool and spa environments. Protected by sealed ball bearings and an open drip proof enclosure, the Emerson 56 Y-Frame Hayward TriStar motor is sure to bring you years of use. Its threaded shaft allows for a secure fit while providing a stronger structure. Its large 6.5 frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Hayward TriStar is a single speed pool and spa motor with up-rated 3 HP, giving it the capability to perform at higher standards for maximum power.

Flange Type:	Square Flange
Energy Efficiency:	High Energy Efficiency
Voltage:	208 – 230V
Pool Type:	In Ground
Speed Settings:	Single Speed
Voltage:	240V
Service Factor:	1.00 – 1.25
Horsepower:	3 HP
Rating Type:	Up-Rated
Rating Type:	Full-Rated
Motor Frame:	56 Frame
Product Type:	Pool Motor
Compatible Pumps:	011516
Manufacturer:	U.S. Motors
